• 2nd & 3rd row coat hooks
• AM/FM stereo w/CD player-inc: (6) speakers, 160-watt amp, speed-compensated volume, RDS, partitioned audio, rear seat controls, MP3 capability
• Analog instrumentation-inc: voltmeter, oil pressure, water temp, tachometer
• Assist handles-inc: color-keyed (2) front, (2) second row
• Black instrument panel-inc: cigarette lighter, pwr point w/cap, auxiliary audio input jack
• Cargo area pwr point
• Cargo organizer
• Carpeted floor mats for 1st/2nd row
• Cloth 2nd row 40/20/40 split bench seat-inc: sliding center portion, recline, fold flat feature, carpeted seatbacks
• Cloth 3rd row 60/40 split-bench seat-inc: fold flat feature
• Cloth low back front captains chairs-inc: 6-way pwr driver seat w/pwr lumbar, 2-way adjustable headrests
• Color-keyed cloth headliner
• Color-keyed cloth sunvisors w/auxiliary visors, dual illuminated mirrors
• Color-keyed floor carpeting
• Color-keyed leather-wrapped steering wheel w/cruise controls
• Concealed antenna in RH quarter glass
• Cruise control
• Cup holders-inc: (2) front/(2) rear in front console, (2) door trim panels, (3) rear quarter trim panels
• Electrochromic rearview mirror
• Floor console-inc: storage bin , coinholder, rear passenger audio controls, headphone jacks, tissue holder, padded cover, front/rear pwr points, auxiliary HVAC controls, pen holder
• Front/rear door map pockets
• Full-length overhead console-inc: front/rear map lights, sunglasses holder, conversation mirror
• Head restraints at all outboard seating positions
• Lights-inc: glove box, front door approach, front dome/map, rear cargo, 2nd row map lights, illuminated entry, theater lighting
• Manual air conditioning w/auxiliary rear climate controls
• Pwr accessory delay
• Pwr door locks-inc: auto lock
• Pwr windows w/driver one-touch-down
• Rear seat heat ducts
• Rear window defogger
• Remote keyless entry w/(2) key fobs, illuminated entry, keypad
• SecuriLock passive anti-theft system
• Tilt steering column
• Tire pressure monitoring system (TPMS)

• 150-amp alternator
• 17" spare tire w/steel wheel
• 17" x 8.0" aluminum wheels
• 3.73 axle ratio
• 4-wheel drive w/ControlTrac
• 4-wheel pwr disc brakes w/anti-lock & brake assist
• AdvanceTrac w/roll stability control (RSC)
• Double wishbone front suspension w/coil-over shock
• Front tow hooks
• Front/rear stabilizer bars
• Independent multi-link rear suspension
• Integrated Class IV trailer towing receiver-inc: 4-pin connector
• Maintenance-free battery w/battery saver feature
• P265/70R17 on/off road OWL tires
• Variable assist pwr rack & pinion steering w/cooler

• 3-point seat belts in rear outboard seating positions
• 4-wheel pwr disc brakes w/anti-lock & brake assist
• Adaptive stroking steering column
• AdvanceTrac w/roll stability control (RSC)
• Beltminder system
• Child safety locks on rear doors
• Front 3-point seat belts-inc: adjustable shoulder harness, load limiting retractors, pretensioners
• LATCH system on rear outboard seats
• Personal safety system-inc: crash severity sensor, dual-stage front airbags, driver seat position sensor
• Safety Canopy
• Side intrusion door beams
• Side thorax air bags

3RD ROW POWERFOLD SEATS

• fold flat feature

• Order Code 230A: 6-Speed Automatic Transmission with Overdrive; 5.4L SOHC 3V V8 Engine; Front Low Back Cloth Captain's Chairs; 7
• 900 lbs Payload Package GVWR; 17" X 8" Aluminum Wheels; 3.73 Axle Ratio; P265/70R17 OWL On/off Road Tires; AM/FM Single CD Radio
• 3rd Row PowerFold Seats
• Brake assist system
• Cruise control with steering wheel mounted controls
• Fixed third-row seats
• Driver seat power cushion tilt
• fore/aft control and height adjustable control
• Control-Trac part and full-time 4WD
• Triton 5.4L V-8 variable valve control
• regular unleaded
• engine with 300HP
• Triton 5.4L V-8
• External keypad door lock control
• Mechanical
• Rear climate control system with separate controls
• PowerFold power fold into floor third-row seat
• SecuriLock(R) immobilizer
• Electronic stability control system with anti-roll
• Heated rear wiper park
• Flip-up rear windshield
• Front fog lights
• Leather steering wheel
• Manual rear child safety door locks
• Roof rails
• Heated driver and passenger side door mirrors
• Manual tilting steering wheel
• 17 x 8-inch front and rear silver aluminum wheels
• P265/70SR17 AT OWL front and rear tires
• Cloth front seat upholstery
• 6 airbags
• Cloth rear seat upholstery
• Driver front impact airbag
• Seat mounted side impact driver airbag
• Safety Canopy System(TM) curtain first
• second and third-row overhead airbags
• Passenger front impact airbag
• Seat mounted side impact front passenger airbag
• Airbag occupancy sensor
• Auto-locking doors
• 6-speed automatic
• Cloth rear seat upholstery
• Manual climate control
• Rear under seat climate control ducts
• Auxiliary rear heater
• Rear headliner/pillar climate control ducts
• 4 12V power outlets
• Transmission electronic control
• Automatic
• Reflector headlights
• Halogen headlights
• Auto on/off headlight control
• Delay-off headlights
• Remote activated perimeter approach lighting
• Bucket front seats
• Driver seat with 8-way directional controls
• Manual driver seat lumbar

• Vehicle
• Rear Door Type: Liftgate
• Mileage
• EPA Fuel Economy Est - City (MPG): 12 (2006)
• EPA Fuel Economy Est - Hwy (MPG): 16 (2006)
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 650
• Maximum Alternator Capacity (amps): 150
• Maximum Alternator Watts: 2250
• Cooling System
• Total Cooling System Capacity (qts): 13
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3700
• Gross Axle Wt Rating - Rear (lbs): 4250
• Curb Weight - Front (lbs): 3099
• Curb Weight - Rear (lbs): 2981
• Gross Vehicle Weight Rating Cap (lbs): 7900
• Gross Combined Wt Rating (lbs): 12400
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 6000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 600
• Suspension
• Suspension Type - Front: Double Wishbone
• Suspension Type - Rear: Multi-Link
• Spring Capacity - Front (lbs): 3700
• Spring Capacity - Rear (lbs): 4250
• Axle Type - Front: Independent
• Axle Type - Rear: Independent
• Axle Capacity - Front (lbs): 3700
• Axle Capacity - Rear (lbs): 4250
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 34.9
• Shock Absorber Diameter - Rear (mm): 34.9
• Stabilizer Bar Diameter - Front (in): 1.4
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.0 x - TBD -
• Rear Brake Rotor Diam x Thickness (in): 13.5 x - TBD -
• Tires
• Front Tire Order Code: T5N
• Rear Tire Order Code: T5N
• Front Tire Size: P265/70R17
• Rear Tire Size: P265/70R17
• Spare Tire Size: P265/70R17
• Front Tire Capacity (lbs): 2305
• Rear Tire Capacity (lbs): 2305
• Spare Tire Capacity (lbs): 2305
• Revolutions/Mile @ 45 mph - Front: 654
• Revolutions/Mile @ 45 mph - Rear: 654
• Revolutions/Mile @ 45 mph - Spare: 654
• Wheels
• Front Wheel Size (in): 17 x 8.0
• Rear Wheel Size (in): 17 x 8.0
• Spare Wheel Size (in): 17 x 8.0
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Variable Pwr Rack & Pinion
• Steering Ratio (:1), On Center: 20
• Turning Diameter - Curb to Curb (ft): 43.93
• Turning Diameter - Wall to Wall (ft): 45.26
• Frame
• Frame Type: Fully Boxed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 33.5
• Fuel Tank Location: Midship
• Doors
• Side Door Type: - TBD -
• Exterior Dimensions
• Wheelbase (in): 131
• Length, Overall w/rear bumper (in): 221.3
• Width, Max w/o mirrors (in): 78.8
• Height, Overall (in): 78.3
• Overhang, Front (in): 39.2
• Overhang, Rear w/bumper (in): 51.1
• Ground to Top of Load Floor (in): 35.9
• Ground Clearance, Front (in): 8.7
• Ground Clearance, Rear (in): 8.7
• Rear Door Opening Height (in): 34.1
• Rear Door Opening Width (in): 56.7
• Side Door Opening Height (in): - TBD -
• Side Door Opening Width (in): - TBD -
• Step Up Height - Front (in): - TBD -
• Step Up Height - Side (in): - TBD -
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): - TBD -
• Cargo Area Length @ Floor to Seat 1 (in): 98.3
• Cargo Area Length @ Floor to Seat 2 (in): 60.2
• Cargo Area Length @ Floor to Seat 3 (in): 28.9
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 51.4
• Cargo Box (Area) Height (in): - TBD -
• Cargo Volume to Seat 1 (ft³): 130.8
• Cargo Volume to Seat 2 (ft³): 85.5
• Cargo Volume to Seat 3 (ft³): 42.6
• Interior Dimensions
• Passenger Capacity: 8
• Front Head Room (in): 39.5
• Front Leg Room (in): 41.1
• Front Shoulder Room (in): 63.2
• Front Hip Room (in): 60.2
• Second Head Room (in): 39.7
• Second Leg Room (in): 39.1
• Second Shoulder Room (in): 63.7
• Second Hip Room (in): 59.9
• Third Head Room (in): 38.0
• Third Leg Room (in): 37.7
• Third Shoulder Room (in): 67.1
• Third Hip Room (in): 51.8
• Summary

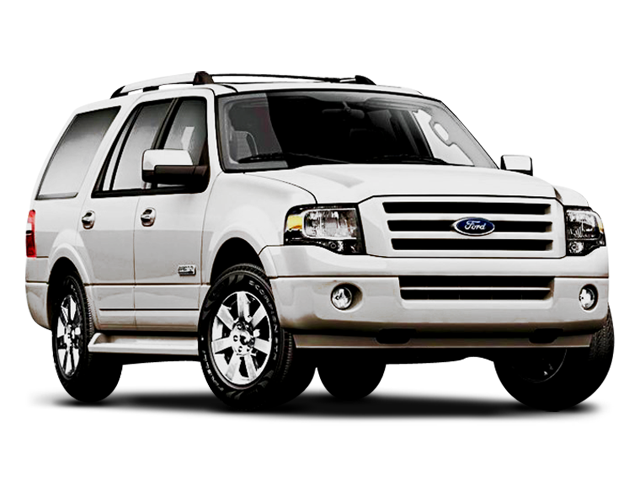

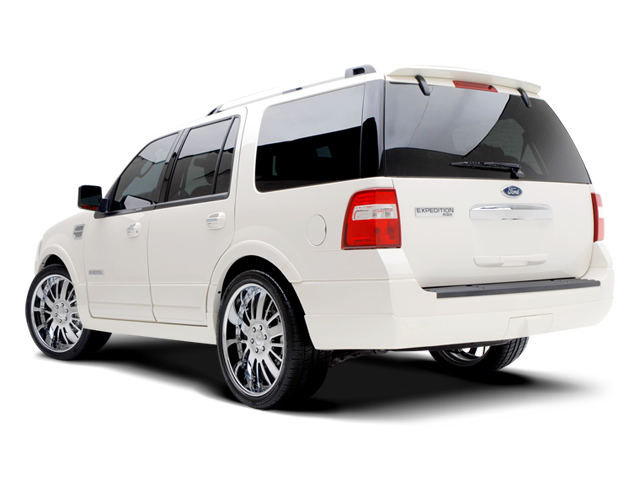

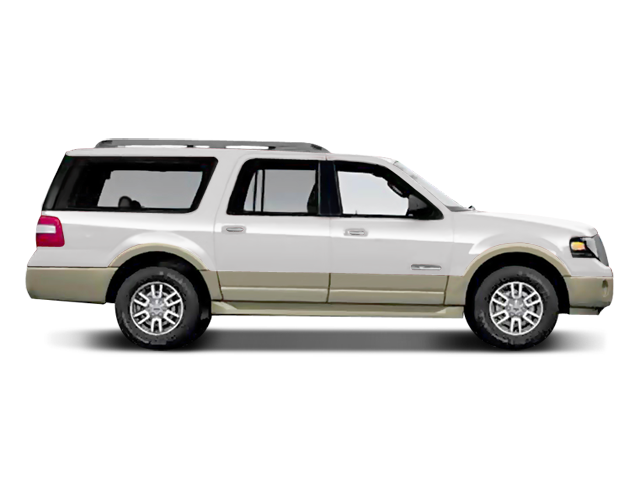

• Vehicle Name: Ford Expedition EL
• Body Style: 4 Door
• Body Code: 131" WB
